Understanding H Style Track Lighting Connectors
H style track lighting connectors are essential components that join sections of track lighting systems and supply power to your lighting setup. These connectors are specifically designed for H-type (Halo-compatible) track systems, which are the most widely used in North America, making up approximately 60-70% of all track lighting installations.
Quick Reference Guide for H Style Track Lighting Connectors:
| Feature | Specification |
|---|---|
| System Type | H-style (Halo-compatible) |
| Configuration | 3-wire, single-circuit |
| Contact Spacing | 15/16 inch (24mm) |
| Voltage | 120 VAC, 50/60Hz |
| Safety | UL Listed, flame-retardant materials |
| Common Finishes | Black, White, Brushed Nickel, Dark Bronze |
| Warranty | Typically 3 years |
H style track connectors come in several varieties to accommodate different layout needs:
- Live End Connectors – For power supply to the track
- L-Connectors – For 90° turns in your track layout
- T-Connectors – For creating branch points
- Flexible Connectors – For adjustable angles up to 90°
- X-Connectors – For four-way intersections
These connectors are designed to work with single-circuit H-type tracks, ensuring proper electrical connections while maintaining the aesthetic appeal of your lighting system.
I’m Michael Eftekhar, and for over 30 years at LBX Lighting, I’ve helped countless customers find the perfect H style track lighting connectors for their residential and commercial projects, ensuring seamless integration and reliable performance for track lighting systems of all sizes.
What Is an H Style Track Lighting Connector?
If you’ve ever wondered about those clever little pieces that make track lighting work, you’re about to become an expert on H style track lighting connectors. These are the unsung heroes of track lighting systems, named after the original Halo brand that pioneered this particular design.
Think of these connectors as both the bridges and power stations of your lighting system. They join sections of track together while also ensuring electricity flows properly to illuminate your space. What makes them specifically “H style” is their unique three-wire configuration with a distinctive contact layout.
When you look closely at an H style track lighting connector, you’ll notice three metal contacts – two live contacts sitting side-by-side on one side, and a single ground contact on the opposite side. This arrangement creates a pattern resembling an “H” when viewed from certain angles, which is where the name comes from.
“I always tell my customers to look for the spacing between the two live contacts – it’s approximately 15/16 inch or 24mm from tip to tip,” says Michael from our team at LBX Lighting. “This specific measurement is the key identifier for H-style systems and ensures you won’t accidentally connect incompatible components.”
Most H style track lighting connectors are designed for single-circuit applications, meaning all your lights on that track will turn on and off together. However, if you’re looking for more control, some advanced H-style systems can accommodate double-circuit configurations with the right adapters, letting you control different groups of lights independently – perfect for creating layered lighting effects.
Safety is paramount with electrical components, which is why quality H-style connectors always come with UL (Underwriters Laboratories) certification. The housing is typically made from flame-retardant materials for additional peace of mind.
One of the biggest advantages of choosing H-style systems is their widespread popularity. They’re the most common track lighting type in North America, accounting for 60-70% of installations. This means replacement parts are readily available, and while components from different manufacturers are generally interchangeable due to standardized dimensions, we typically recommend sticking with the same brand for the best fit.

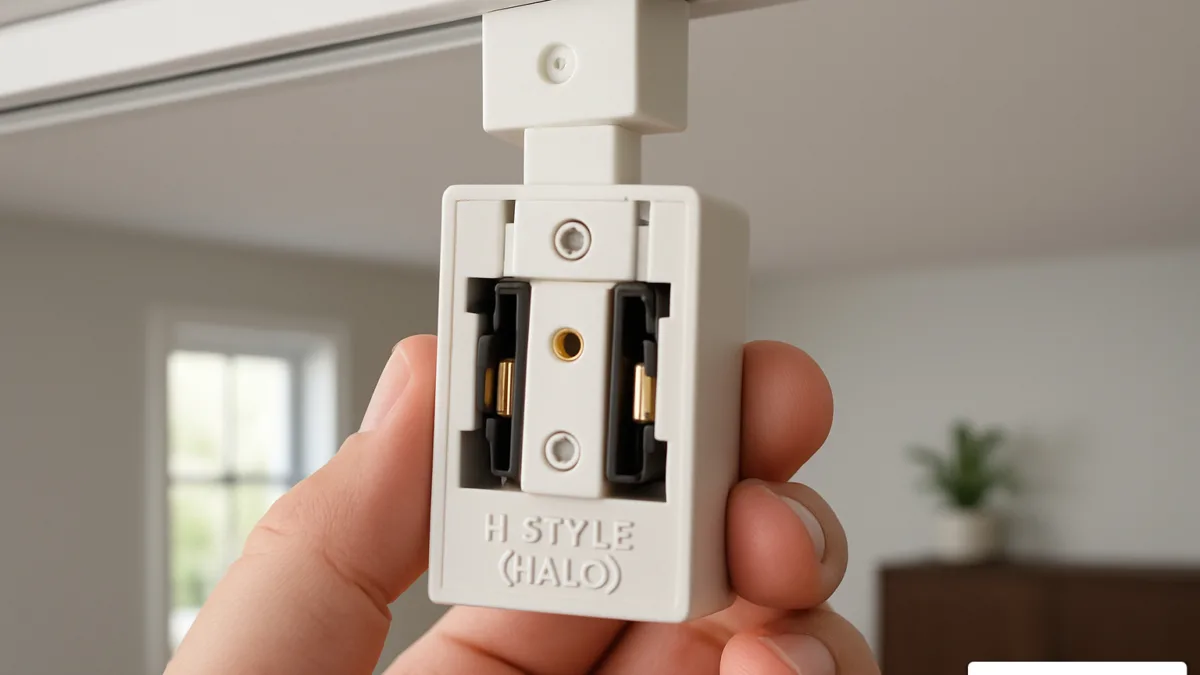

How do you identify an H style track lighting connector? Look for:
– Three metal contacts (two grouped together, one separate)
– Approximately 15/16″ spacing between the live contacts
– A ground clip or contact on the opposite side
– “H-type” or “Halo-compatible” labeling
– UL certification marking
Here at LBX Lighting in Houston, we pride ourselves on carrying a comprehensive selection of H style track lighting connectors in various finishes – from classic white and black to sophisticated brushed nickel and dark bronze. Whether you’re matching an existing system or creating something entirely new, we’ve got you covered with components that ensure both reliable performance and visual appeal.
Buying Guide & Installation Tips
When it comes to choosing the right H style track lighting connectors for your home or business, a little planning goes a long way. At LBX Lighting, we’ve seen how proper preparation can make the difference between a frustrating installation and a smooth, successful lighting upgrade.
Planning Your Layout
Before you purchase a single connector, grab a pencil and sketch out your space. Mark where you want light to fall, where your furniture sits, and any architectural features you want to highlight.
“Most of my customers find it helpful to walk through their space at different times of day,” says Michael, our senior lighting consultant. “Notice where natural light falls and where you need extra illumination. That’s your starting point for track placement.”
Consider your ceiling height, joist locations (these will be your mounting points), and the position of your junction boxes for power. Whether you’re looking at a simple straight run or a more complex configuration with turns and branches, having this map will guide your connector choices.
Load Calculation
One mistake we see often? Overloading a track with too many fixtures or watts. Standard H-style tracks typically handle up to 20 amps at 120 VAC, but that doesn’t mean you should push those limits.
Count up the total wattage of all fixtures you plan to install and make sure you’re well within the track’s rating. It’s not just about safety (though that’s paramount) – an overloaded track can lead to voltage drops that make your lights appear dimmer than expected.
Single vs. Double Circuit Considerations
Most H style track lighting connectors are designed for single-circuit setups, meaning all your lights turn on and off together. If you need more control, you have a few options:
Set up separate track runs with their own power supplies – perfect for defining different zones in a large space.
Look into specialized double-circuit H-type systems – these cost more but offer flexibility.
Consider smart bulbs or fixtures that can be controlled individually – a modern solution that works with existing single-circuit tracks.
“I had a customer who wanted to highlight artwork separately from general lighting,” shares Tom from our installation team. “We used a single track but installed smart fixtures that could be grouped and controlled independently through an app. Simple installation, sophisticated control.”
Comparing Track Systems
While we’re focusing on H-style systems, it helps to understand how they compare to other options:
| Feature | H-Style | J-Style | L-Style |
|---|---|---|---|
| Contact Configuration | 3 contacts (2+1) | 2 contacts | 2 contacts |
| Contact Spacing | 15/16″ (24mm) | Wider spacing | Narrower spacing |
| Prevalence | 60-70% of installations | Less common | Less common |
| Circuit Options | Primarily single-circuit | Single-circuit | Two-circuit capable |
| Profile Height | 0.6875″ | Slimmer | Similar to H |
| Compatibility | Halo and compatible brands | Juno and compatible | Lightolier and compatible |
H-style systems dominate the market for good reason – they’re reliable, widely available, and offer plenty of options for most residential and commercial needs.
Code Compliance
Safety first, always. All electrical installations need to comply with the National Electrical Code (NEC) and your local building regulations. This means:
Using UL-listed components that have been safety tested
Ensuring proper grounding connections
Maintaining appropriate clearances from combustible materials
Choosing the right wire size for your electrical load
Keeping junction boxes accessible for future maintenance
When installing H style track lighting connectors, follow the manufacturer’s torque specifications – typically 10-15 inch-pounds for connector screws. Too loose and you’ll have poor connections; too tight and you might damage components.
For detailed technical specifications on H-style track lighting connectors, you can refer to the WAC Lighting technical spec sheet which provides valuable information about electrical ratings and installation requirements.
Want to explore more track lighting options? Visit our comprehensive Track Lighting section on the LBX Lighting website for additional resources and products.
Live End Feed – Best for Straight Runs
The Live End Feed connector is the unsung hero of your track lighting system – it’s the vital component that brings power from your electrical supply to the track. If you’re planning a straight run of track lighting, this is the h style track lighting connector you’ll want to start with.
Think of the Live End Feed connector as the gateway between your home’s electrical system and your stylish track lighting. One side connects snugly to your junction box while the other features those distinctive H-style contacts that slide into your track.
“Live End Feed connectors are the workhorses of track lighting systems,” explains our product specialist with a smile. “They handle the full electrical load while keeping everything looking clean and streamlined – no messy wires hanging down!”
When you choose one of our h style track lighting connectors for your power feed, you’re getting a thoughtfully designed component with features that matter. Our connectors mount directly to standard junction boxes, making installation a breeze. Many models include convenient knockouts for 1/2-inch conduit connections if you need to route your wiring that way.
I’ve helped countless customers select the right Live End Feed connector, and they always appreciate the secure quarter-turn locking mechanism that keeps everything firmly connected. You’ll also have peace of mind knowing these connectors are housed in flame-retardant material and UL-listed for safety.
At LBX Lighting, we understand that aesthetics matter too. That’s why our Live End Feed connectors come in multiple finishes – black, white, brushed nickel, and dark bronze – so you can perfectly match your track system. And we stand behind the quality with a solid 3-year warranty.
For homeowners tackling their first track lighting project, our popular 8-foot track lighting kits include everything you need: track sections, a Live End Feed connector, and end caps. These kits are perfect for brightening up your kitchen island, home office, or creating accent lighting in your living room.
Our commercial customers often prefer our heavy-duty options with reinforced housing and higher load capacities. These robust connectors stand up to the demands of retail displays, gallery lighting, and restaurant installations.
When you’re installing your Live End Feed connector, proper alignment is key. The connector should slide smoothly into the track without forcing, and the locking mechanism should turn easily to secure the connection.
Want to explore our full range of h style track lighting options? Visit our H Style Track Lighting page for detailed information about Live End Feed connectors in various finishes and complete kits to suit your specific needs.
L-Connector – Best for 90° Turns
When your lighting design needs to make a turn, the L-Connector becomes your best friend in the h style track lighting connector family. These clever connectors allow you to create corner layouts that follow your room’s contours while keeping the electricity flowing smoothly throughout your system.
“L-Connectors completely transform what’s possible in retail spaces and galleries,” says our commercial lighting specialist at LBX Lighting. “Instead of stopping and starting new track runs, you can simply flow around corners for a much cleaner look and simpler installation.”
These connectors come in both right-turn and left-turn configurations, letting you plan your layout exactly as needed. Each L-Connector maintains the standard H-style three-contact arrangement at both ends, ensuring perfect alignment with your track sections. Inside the connector body, internal bus bars carry electricity around that 90° turn while maintaining proper polarity and grounding.
What makes these connectors so useful in real-world applications is their versatility. They provide not just electrical continuity but also structural support at corner junctions. Their flush mounting creates a sleek, professional appearance that’s particularly important in high-end retail environments where aesthetics matter just as much as functionality.
We’ve seen our customers use L-Connectors creatively in countless ways. In retail stores, they create perimeter lighting that perfectly follows the store layout. Art galleries use them to form lighting patterns that complement exhibit arrangements. In homes, they’re perfect for kitchen lighting that follows cabinet layouts or for creating ambient lighting around a home theater perimeter.
“Here’s a pro tip from our installation team,” shares our senior lighting consultant. “Mount your tracks first, then install the L-Connector between them. This approach gives you more flexibility to make small adjustments for perfect alignment before locking everything in place.”
For spaces with suspended or drop ceilings, we offer specialized L-Connectors designed to work seamlessly with T-bar grid systems. These make installation significantly easier while maintaining the clean aesthetic of your lighting design.
The continuous ground connection throughout the L-Connector ensures your system remains safely grounded, which is especially important when creating complex layouts with multiple turns and branches.
At LBX Lighting in Houston, we carry a complete selection of h style track lighting connectors including L-Connectors in all standard finishes – black, white, brushed nickel, and dark bronze. This ensures you’ll find the perfect match for your existing track system or new installation.
Whether you’re planning a simple L-shaped layout or a complex perimeter lighting system with multiple corners, our team can help you select the right connectors for your specific needs. Visit our H Style Track Lighting page to explore our full range of options.
T-Connector – Best for Branching
The T-Connector is a versatile H style track lighting connector that opens up a world of design possibilities by allowing you to create branching layouts. Think of it as the junction that lets your lighting story take a new direction – adding a perpendicular track section from your main run. For open-concept living areas, spacious retail environments, or art galleries where lighting needs to flow in multiple directions, the T-Connector becomes an essential part of your lighting toolkit.
“T-Connectors are like the crossroads in your lighting journey,” says Maria, one of our design consultants at LBX Lighting. “They give you the freedom to create more complex lighting stories without sacrificing that clean, integrated look that makes track lighting so appealing. I’ve seen customers use them to create amazing focal points or extend lighting into adjacent areas with beautiful results.”
What makes these connectors special is their thoughtful design. Each T-Connector features the standard H-style three-contact configuration at all three connection points, ensuring your electricity flows smoothly throughout your branched system. Inside the connector, a clever arrangement of bus bars maintains correct polarity and grounding across all branches – something you’ll never see but will always appreciate when your lights work flawlessly.
When we install T-Connectors for our customers at LBX Lighting, we’ve found they excel in so many environments. Gallery owners love how they can create dedicated lighting zones for different art displays. Retail shops use them to highlight feature merchandise while maintaining consistent perimeter lighting. In open floor plans, they help define different functional areas with targeted light. Kitchen designers appreciate how they can illuminate both perimeter countertops and islands with a single system. Even commercial spaces benefit from creating lighting patterns that subtly guide customer flow.
Installation tip: When adding a T-Connector to your system, proper alignment is crucial for both appearance and function. We recommend mounting your main run track first, then attaching the T-Connector before using it as a guide to position your perpendicular track. This approach makes it much easier to achieve that professional, perfectly aligned look.
One word of caution that we always share with our customers: “Adding a T-Connector doesn’t magically increase your circuit capacity,” explains Tom, our technical specialist. “You’re still limited by the amperage rating of your power supply and track. For larger installations with lots of fixtures, consider using multiple power feeds at strategic points rather than relying on a single Live End Feed.”
For those designing larger spaces, some T-Connector models even allow for a central power feed directly at the junction point – a feature that can simplify your wiring and provide more balanced power distribution throughout your system.
At LBX Lighting in Houston, we stock T-Connectors in all the standard finishes you’d expect – black, white, brushed nickel, and dark bronze – ensuring you’ll find the perfect match for your existing track system or new installation. Our team is always happy to help you plan the perfect branching layout for your specific lighting needs.
Flexible Connector – Best for Angled Layouts
When standard 90° connectors just won’t do the trick, the Flexible Connector becomes your best friend in the H style track lighting connector family. These clever little devices are the chameleons of track lighting, adapting to angles anywhere from completely straight (0°) to right-angle (90°) positions—perfect for those tricky vaulted ceilings, sloped surfaces, or any layout that refuses to stick to conventional right angles.
“I like to call our Flexible Connectors the ‘problem-solvers’ in track lighting,” says Maria, our custom lighting specialist at LBX Lighting. “We’ve all walked into spaces with beautiful architectural features that don’t play nice with standard lighting. That’s when these flexible friends save the day—they let you follow the natural flow of a space without compromising on your lighting design.”
Despite their flexibility, these connectors don’t skimp on electrical reliability. They maintain the standard H-style three-contact arrangement at both ends, with a clever articulating joint in between that you can adjust to your desired angle and then lock firmly in place. This thoughtful design ensures electricity flows perfectly while giving you the mechanical wiggle room you need.
What makes our H style track lighting flexible connectors special is their versatility in real-world applications. In Houston homes with vaulted ceilings, we’ve seen them follow dramatic slopes to create stunning lighting effects. For clients with exposed beam installations, they make the perfect transition from horizontal ceilings to angled surfaces. They’re equally at home in stairwells, creating continuous lighting along walls, or highlighting unique architectural features that would otherwise be lighting nightmares.
Many of our models include a handy knockout option for direct power feed at the junction point. This feature is a genuine lifesaver in installations where bringing power to the end of a track run would otherwise involve major ceiling surgery.
“Here’s a pro tip we share with our DIY customers,” offers Tom from our installation team. “When working with Flexible Connectors on sloped ceilings, gravity is still very much in effect! Plan for additional support points to prevent sagging, especially on longer runs. Your track might be flexible, but it shouldn’t look droopy.”
For dramatic pendant applications, these connectors truly shine. They allow you to transition seamlessly from a horizontal track to a vertical drop without cobbling together separate adapters or hunting down custom components.
At LBX Lighting in Houston, we’ve stocked our shelves with a complete range of H style track lighting connectors in all the standard finishes you’d expect—black, white, brushed nickel, and dark bronze. This means you’ll find the perfect match whether you’re complementing existing decor or starting fresh with a new installation. Our team is always happy to help you puzzle out even the most challenging installation scenarios—just bring in a photo or sketch of your space, and we’ll help you find the right connector for the job.
Ready to tackle those tricky angles in your lighting project? Stop by our Houston showroom or visit our H Style Track Lighting page to explore our full selection of flexible connectors and other track lighting components.
Frequently Asked Questions about H Style Track Lighting Connectors
How do I identify an h style track lighting connector?
Spotting an H style track lighting connector isn’t too difficult once you know the telltale signs. The most obvious giveaway is the three-contact layout – you’ll see two electrical contacts sitting side by side on one side, with a lonely ground contact on the opposite side.
“When customers bring in connectors to our store, the first thing I check is the spacing between those two live contacts,” says Mike, our technical specialist at LBX Lighting. “True H-style connectors have those contacts spaced about 15/16 inch or 24mm apart from tip to tip – that measurement is the dead giveaway.”
You can also recognize H-style connectors by their slightly bulkier profile compared to slimmer J-style systems. Check the packaging too – reputable manufacturers will clearly label them as “H-type” or “Halo-compatible.” These connectors are typically designed for single-circuit setups and carry a UL listing for standard 120V AC household power. The track itself usually measures about 1-3/8 inches wide.
Still scratching your head about what type you have? Bring your connector to our LBX Lighting showroom in Houston, and we’ll identify it for you and help you find compatible replacements that fit perfectly.
Are H style connectors interchangeable between brands?
In theory, yes – H style track lighting connectors should work across different brands that follow the H-type standard. That’s actually one of the big selling points of H-style systems – the standardized dimensions and contact layout mean you’re not locked into one manufacturer.
“While most H-style connectors play nicely together, I always recommend testing cross-brand connections before you finish your installation,” shares Sarah from our product team. “I’ve seen situations where tiny manufacturing differences create connections that aren’t quite as snug as they should be.”
For the best results and peace of mind, we typically suggest sticking with the same brand when possible. If you do mix brands, make sure to test the connection thoroughly, verify all components carry UL listing for safety, and double-check that the contacts make firm, solid connections.
Here at LBX Lighting, we stock H-style connectors that work seamlessly with all major track systems. This gives you plenty of flexibility when you’re expanding an existing setup or replacing worn-out components without having to replace everything.
Can I mix single-circuit and double-circuit tracks with the same connector?
Most H style track lighting connectors are built for single-circuit systems, where all your lights turn on and off together. That said, some manufacturers do make specialized H-style tracks and connectors that can handle two circuits, letting you control different groups of lights independently.
“This is where I see homeowners get confused,” explains Carlos, our electrical specialist. “Standard single-circuit H-style connectors simply don’t have the extra contacts needed to properly connect to double-circuit tracks. It’s not just about making it fit – it’s about making a safe, proper electrical connection.”
If you’re working with (or planning to install) double-circuit tracks, you’ll need connectors specifically designed for that purpose. You’ll also need appropriate wiring to support those independent circuits and the right switches or controls to manage them separately.
For most homes, single-circuit systems work perfectly fine. Double-circuit setups are more common in shops, restaurants, and galleries where different lighting zones or scenes make sense.
Not sure what you need? Drop by LBX Lighting or give us a call. Our lighting experts can help identify what you currently have and recommend compatible solutions that will work perfectly for your particular situation – without the headaches of trial and error.
Conclusion
Navigating H style track lighting connectors doesn’t have to be complicated. With the right knowledge and quality components, you can create versatile, attractive lighting solutions for any space. As we’ve explored throughout this guide, H-style track systems offer remarkable flexibility through their various connector types, allowing you to design lighting that perfectly suits your needs.
Maintenance Tips for Long-Term Performance
Your track lighting system can provide years of reliable service with just a little attention. I’ve seen systems last well over a decade when properly maintained. The key is regular care – a quick inspection once a year can prevent most common issues before they start.
Dust is the silent enemy of track lighting systems. A gentle wipe with a soft, dry cloth keeps both connectors and tracks clean and functioning properly. While you’re dusting, take a moment to check that all connections remain tight and secure. Over time, normal vibrations in a home can gradually loosen even the most secure connections.
Pay attention to your system’s electrical load. I’ve visited many homes where flickering lights were simply the result of too many fixtures added to a track over time. Each track section has a maximum capacity that shouldn’t be exceeded.
“Most track lighting issues we see aren’t component failures at all,” shares our service manager at LBX Lighting. “It’s usually just loose connections or someone trying to power too many fixtures from one circuit. Simple fixes for what seem like complex problems.”
If you do notice any damaged components, don’t wait to replace them. A cracked connector or loose contact isn’t just an inconvenience – it can potentially create a safety hazard. Prompt replacement ensures your system stays safe and functional.
Why Choose LBX Lighting for Your Track Lighting Needs
At LBX Lighting, we’ve been lighting up Houston homes and businesses for decades. We’re not just selling products – we’re sharing our expertise to help you create the perfect lighting environment for your space.
Our selection of H style track lighting connectors covers everything you might need, from basic Live End Feeds to specialized Flexible Connectors for those tricky angled ceilings. We stock all the essential components in multiple finishes to match your décor: classic white, sophisticated black, warm brushed nickel, and rich dark bronze.
I remember helping a customer who came in frustrated after visiting three big box stores without finding the right connector. Within minutes, we’d not only found the exact H style track lighting connector he needed but also showed him options he didn’t know existed that solved other challenges in his space.
For DIY homeowners, our staff can walk you through the entire installation process, helping you select the right components and avoid common pitfalls. For contractors handling larger projects, ask about our bulk pricing and dedicated project support. We understand that deadlines and budgets matter, and we’re committed to helping you meet both.
The best lighting combines technical excellence with aesthetic appeal. Our team excels at both aspects, helping you create lighting that’s as beautiful as it is functional. Whether you’re updating a single room or designing lighting for an entire commercial space, we have the expertise to guide you every step of the way.
To explore our complete range of H-style track lighting options or speak with one of our lighting specialists about your specific needs, visit our H Style Track Lighting page or stop by our Houston showroom. We’d love to help illuminate your next project.
With the right H style track lighting connectors and thoughtful design, you can create lighting that not only improves your space today but can adapt as your needs change tomorrow. At LBX Lighting, we’re here to help you achieve that perfect balance of function, efficiency, and style – without the headaches.
